J200 Retaining Pin & Washer
INC. VAT £2.33
J200 Retaining Pin & Washer is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Order before 2pm to get next day delivery for in-stock items. Shipping fees will be calculated at checkout.
J200 Retaining Pin & Washer
INC. VAT £2.33
Description
Description

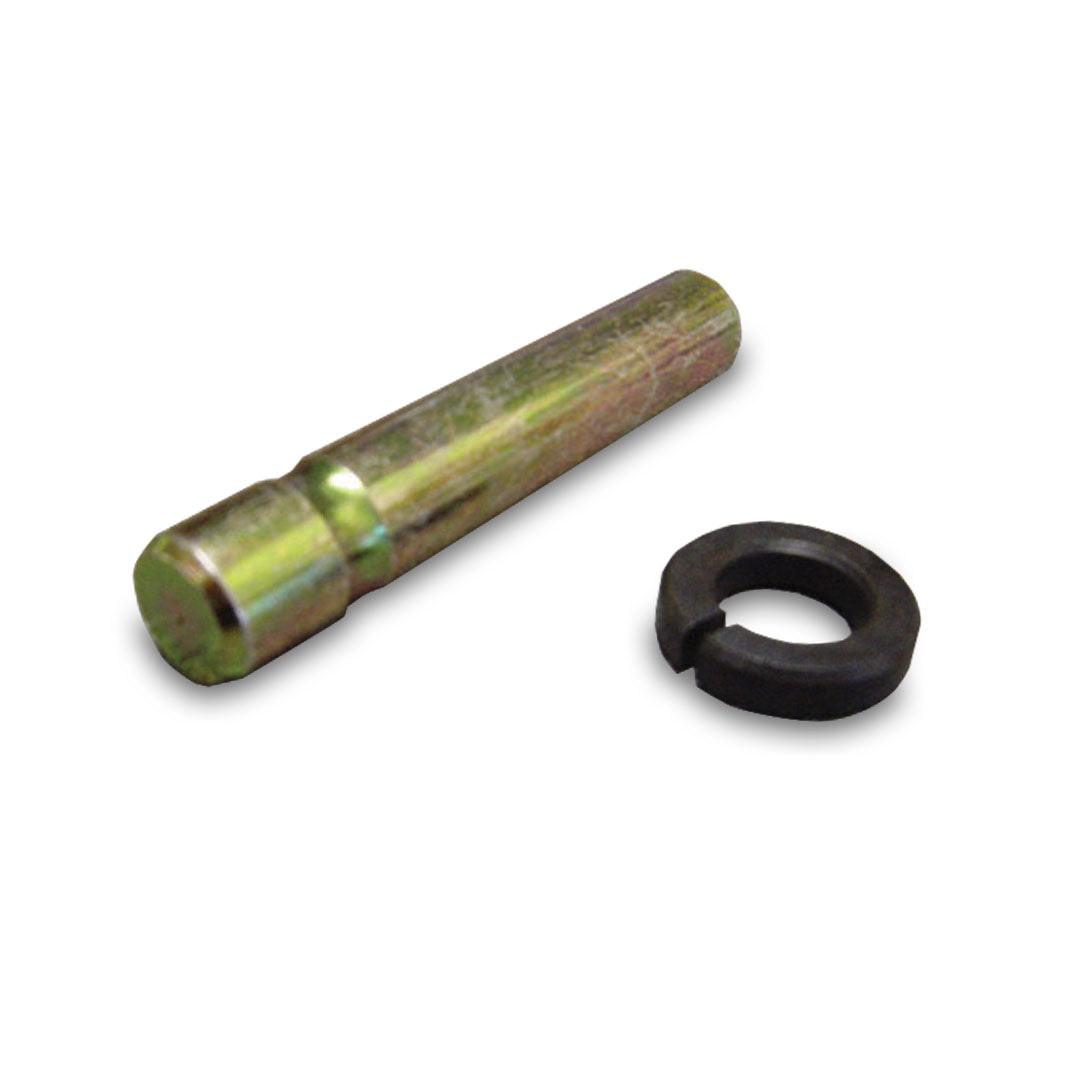

J200 pin with c-type washer clip, to retain tooth tip onto adapter.
Pin dimensions: diameter 11mm x 55mm long
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Identifying CAT Type Teeth
IMPORTANT!
Measure the pin diameter and length (mm) to determine which tooth series you have.
Refer to the table below to size the "J" series, size classes. Most classes have a choice of types of tip.
CAT Type "J" Series Tip Identification:
-
Tooth Series (Size)
J200
J250
J200
J350
J450
J550
J600
-
Retaining pin dia.
11 mm
14 mm
14 mm
19 mm
24 mm
25 mm
30 mm
-
Retaining Pin Length
55 mm
76 mm
90 mm
105 mm
132 mm
161 mm
193 mm
-
Cutting Edge Gauge
20 mm approx.
25 mm approx.
30 mm approx.
40 mm approx.
50 mm approx.
60 mm approx.
70 mm approx.
