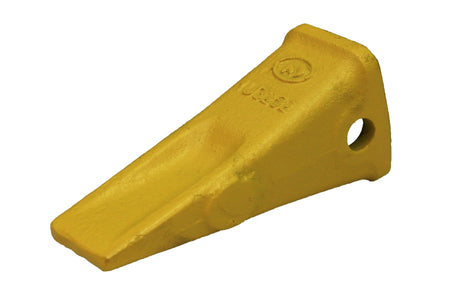

Identifying CAT Type Teeth
IMPORTANT!

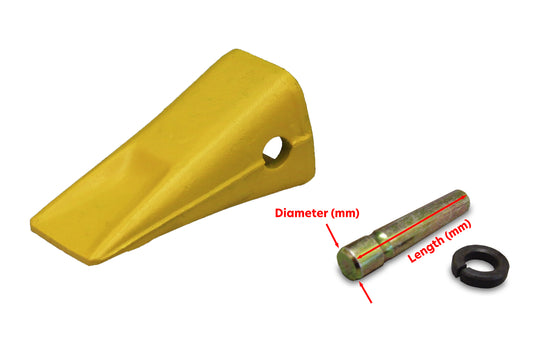

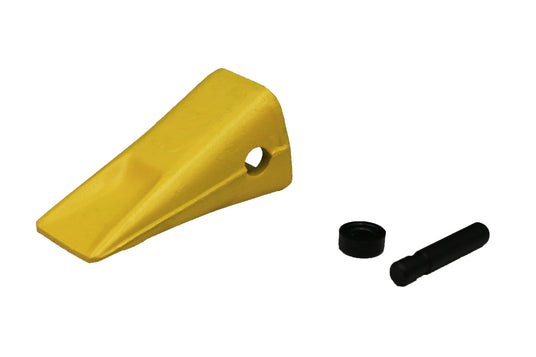

Measure the retaining pin diameter and length (mm) to determine which tooth series you have. This is the only reliable way to differentiate the size, especially once teeth are worn.
Refer to the table below to size the "J" series, size classes. Most classes have a choice of types of tip.

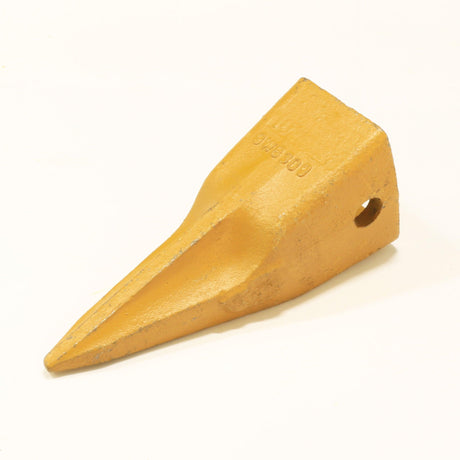

CAT Type "J" Series Tip Identification:
-
Tooth Series (Size)
J200
J250
J200
J350
J450
J550
J600
-
Retaining pin dia.
11 mm
14 mm
14 mm
19 mm
24 mm
25 mm
30 mm
-
Retaining Pin Length
55 mm
76 mm
90 mm
105 mm
132 mm
161 mm
193 mm
-
Cutting Edge Gauge
20 mm approx.
25 mm approx.
30 mm approx.
40 mm approx.
50 mm approx.
60 mm approx.
70 mm approx.
