Auger Teeth

(6 products)

Replacement teeth and pilots for your Digga auger flights. Refer to images on flight product pages if you do not know which teeth or how many your flight requires. Or look at chart below.

All flights require a centre, pilot tooth. Narrower flights have no other teeth, mid range diameters have outer teeth and wider auger flights have booth outer and also innner teeth.

Important Notes!

  • Teeth are different between the A4 (65mm round drive) class and A6/A8 (75mm square drive) class flights.
  • These teeth will not fit other makes of flight, only Digga.

A4 Flight Teeth

Refer to the notes below and the table opposite to  see what replacement teeth are needed for the different diameters of A4 (65mm round drive) flights.

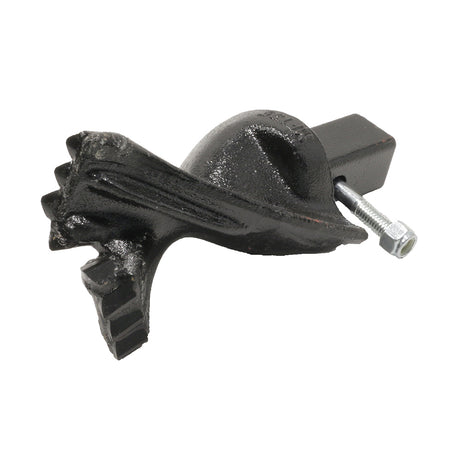

All flights require a pilot (center) tooth: GDE-PM-SQ-3

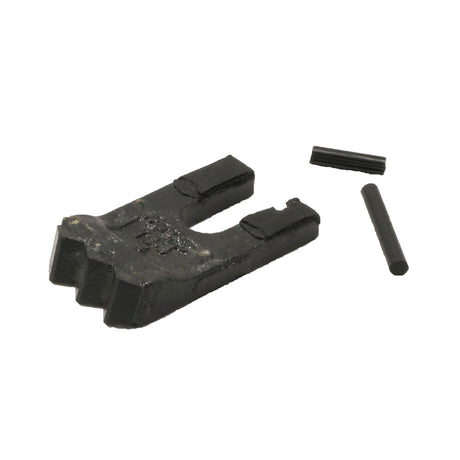

GDE-TS-3 (OUTER TOOTH)

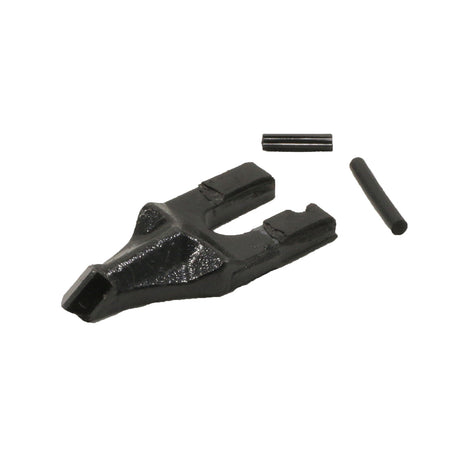

GDE-TS-C-3 (INNER TOOTH)

100mm

150mm & 200mm

2

225mm & 250mm

2

2

300mm to 450mm

2

4

500mm & 600mm

2

6

750mm

2

7

900mm

2

9

A6 & A8 Flight Teeth

Refer to the notes below and the table opposite to  see what replacement teeth are needed for the different diameters of A6 & A8 (75mm square drive) flights.

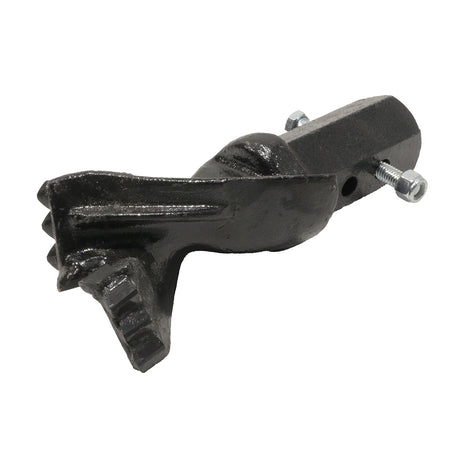

All flights require a pilot (center) tooth: GDE-HX-3-K

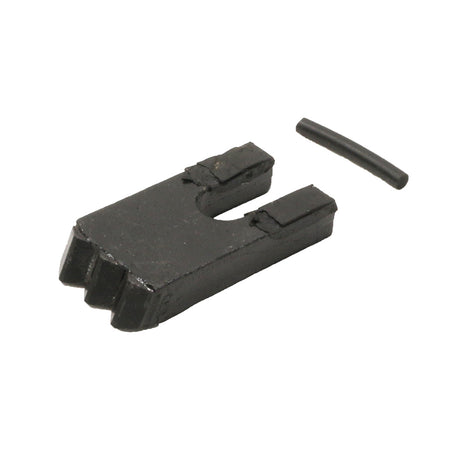

GDE-TM-3 (OUTER TOOTH)

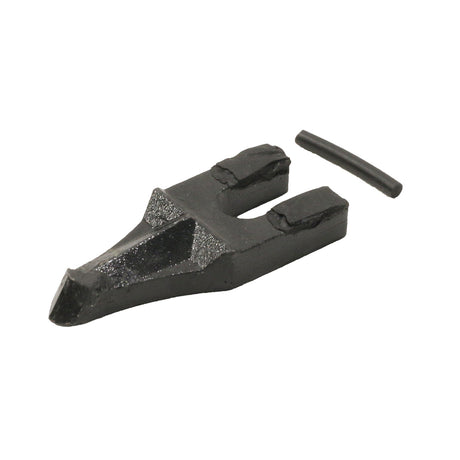

GDE-TM-C-3 (INNER TOOTH)

150mm to 250mm

2

300mm & 350mm

2

2

400mm

2

4

450mm to 600mm

2

6

750mm

2

7

900mm & 1000mm

2

10

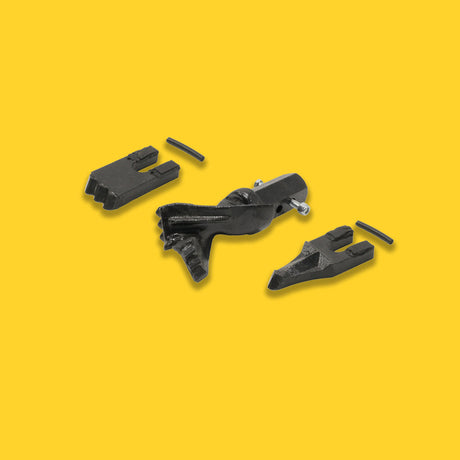

Auger Teeth

Replacement teeth for Digga Auger flights for excavators.

How to select:

  1. Check which auger flight you have: 65mm round A4 or
    75mm A6/A8.
  2. Check the type of tooth you need, centre pilot, outer tooth, or inner tooth. You can refer to the chart on this page or look at the images on the auger flight product page.
