Quality Excavator Wear Parts

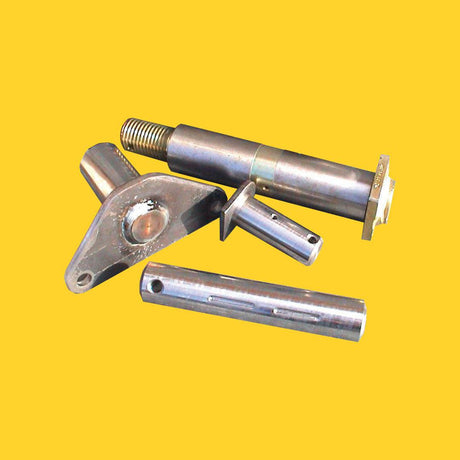

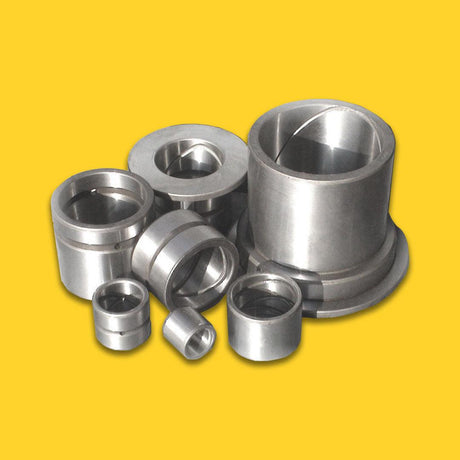

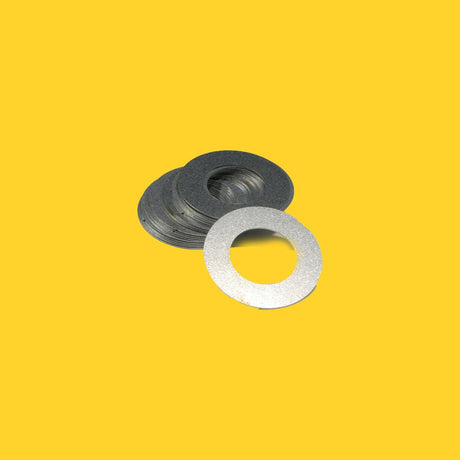

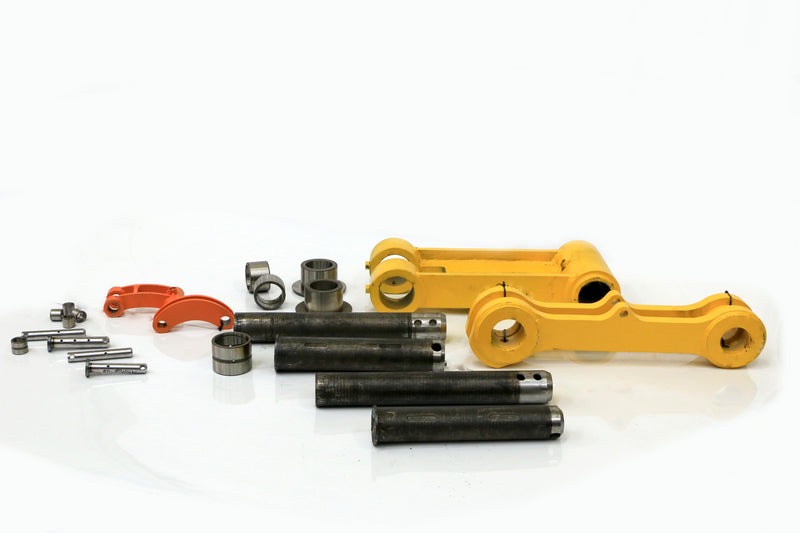

Pins, Bushes, Seals, Shims, Linkages
DIGBITS quick reference diagrams, make identifying the correct parts - excavator pins, bushes and linkages - far quicker and easier than OEM parts books.
Quick Reference Diagrams:
-
![]()

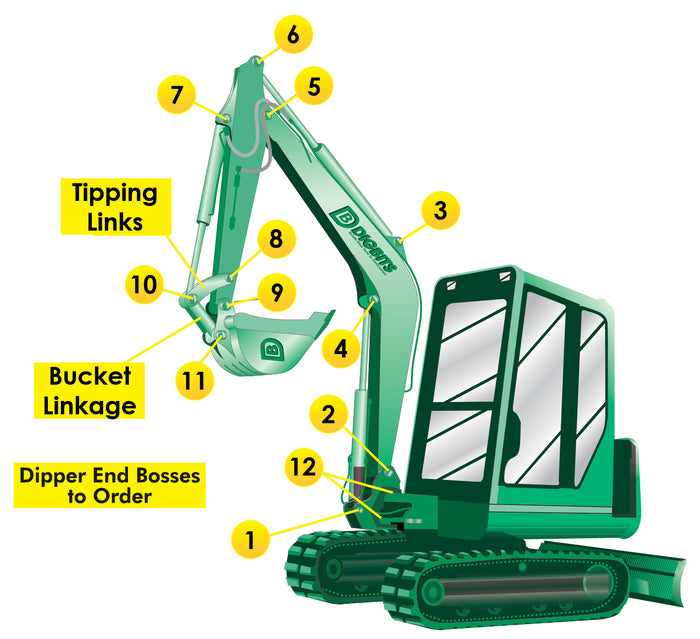

Micro & Mini Excavator Quick Reference Diagram
Use this diagram for machines from 0-5 to 10 tonnes. Note that some smaller machines have the boom lift ram (locations 1 and 4) above, not below the dipper.
-
![]()

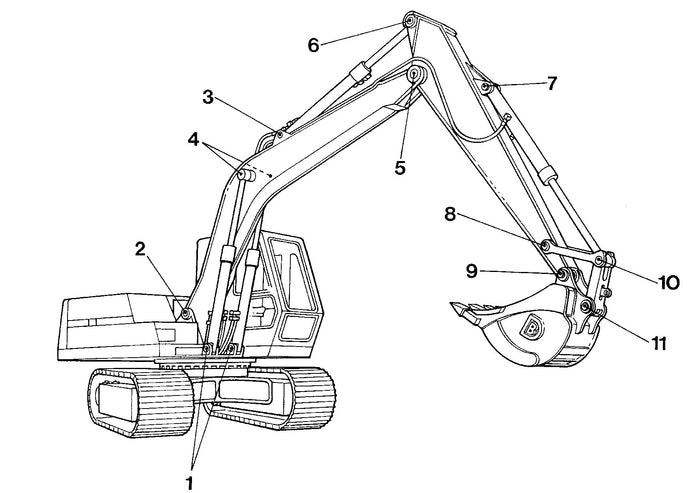

Full-sized Excavator Quick Reference Diagram
Use this diagram for machines from 10 tonnes upwards.
How To Order:
Ordering is simple:
- Use our quick reference diagram above.
- Identify the location number(s) which require attention, and we will quote you for whichever components you require.
- Find the make & model of your excavator. A serial number is often also useful.
- Call us or fill in the from below with your enquiry. We will quote price and availability within 1-2 hours, Mon-Fri 8am-3pm.

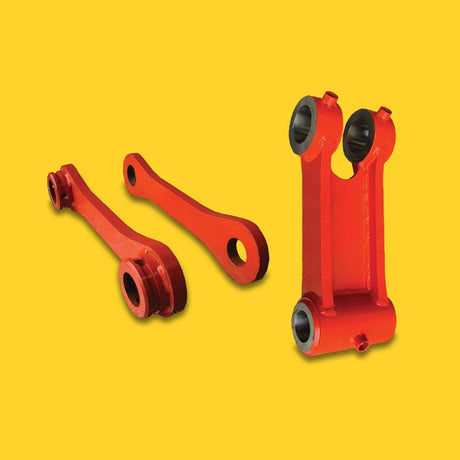

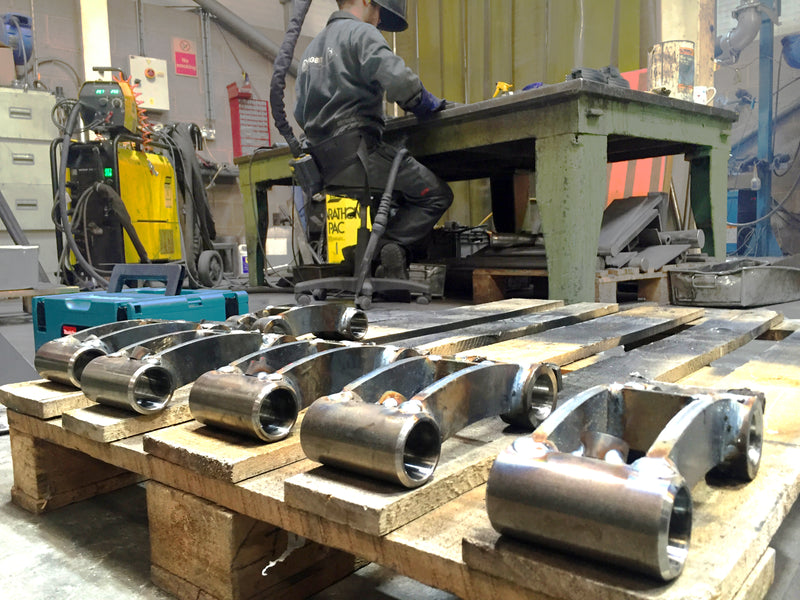

We manufacture and stock bucket links and tipping links for mini and 360° excavators.
