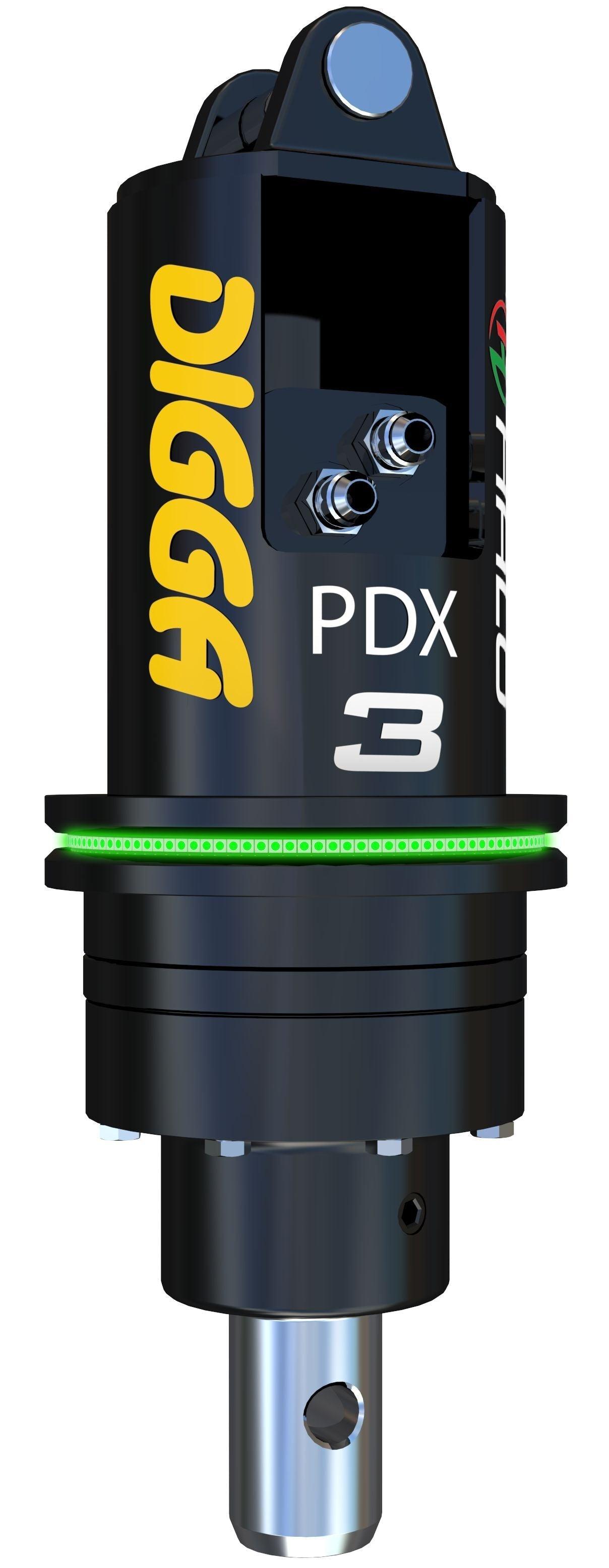

PDXH3-2 Premium HALO Auger Drive - 65mm Round - 1.5 - 3t

Drive Unit with HALO alignment system for mini excavators 1.5 to 3.0 tonnes. High quality Eaton hydraulic motor and the use of only high grade reduction gear materials mean that your Earth Drill will have a long, reliable service life.

• Suits A4 auger flights from 100 - 600mm diameter
• Max. Auger Diameter Clay/Shale 500mm
• Max. Auger Diameter Earth 600mmm
• 240 Bar max. hydraulic pressure
• Recommended Flow 30-55 l/min
• 2,831 Nm max. torque
• 65mm round output shaft
• HALO alignment system, located in the hood ring of the auger drive, which provides an operator with a simultaneous clear line of sight to itself, as well as the hole being dug. HALO utilises a band of LED lights, which when fully illuminated green, indicate the drive is plumb.
• Optional extra battery means you do not have to wire HALO into the excavator cab and also gives the ability to change the default settuing angle.
• Supplied complete with 2.2 metre long auxiliary hoses & 1/2" BSP flat face male & female quick release couplings
