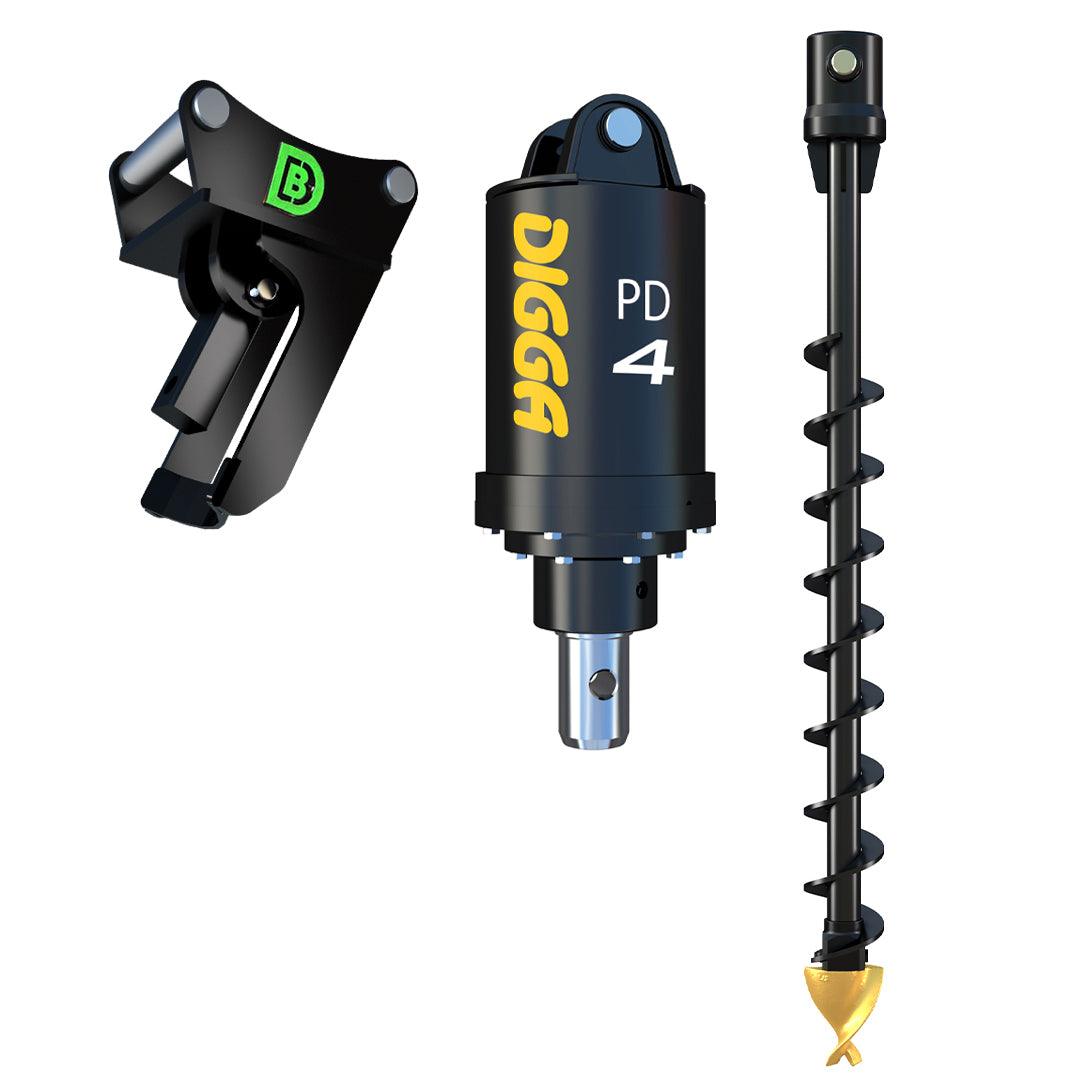

PD4 Auger Package C/W Double Pin Cradle Hitch, 3.5-5.0t mini excavators

Digga Auger Package, with PD4 Earth Drill Drive Unit for 3.9 to 5.0 tonne mini excavators, with double pin cradle hitch and at least one tungsten auger flight.

• 4,448NM torque
• Recommended Flow 55-85 l/min
• Flights from 100mm to 750mm in clay/shale and up to 900mm in earth

IMPORTANT NOTES:

1. Please select your Auger Flight choice/s from the list.
2. At least one flight must be added to complete your package deal. You may also add additional flight(s).
3. Please enter the full make and model of your excavator in the notes section at the next stage.
4. Provide the pin diameter and pin centre measurements if you have a hitch. There is no such thing as a 'standard' hitch!

The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary earth drills are fitted with Digga / Eaton bell motors specially designed for earth drilling in most ground conditions.

Features

• Compact high torque Digga manufactured gearbox
• Highly efficient design with less moving parts
• Fitted with Eaton/Digga geroler hydraulic motor
• No case drain required
• Full range of shafts available upon request
• Extreme duty shaft locking system
• Drive fits down the hole for greater digging depth
• Low maintenance with 5yr gear box and 3yr motor warranty
• Supplied complete with 2.2 metre long auxiliary hoses & 1/2" BSP flat face male & female quick release couplings
