SKU: BTS04

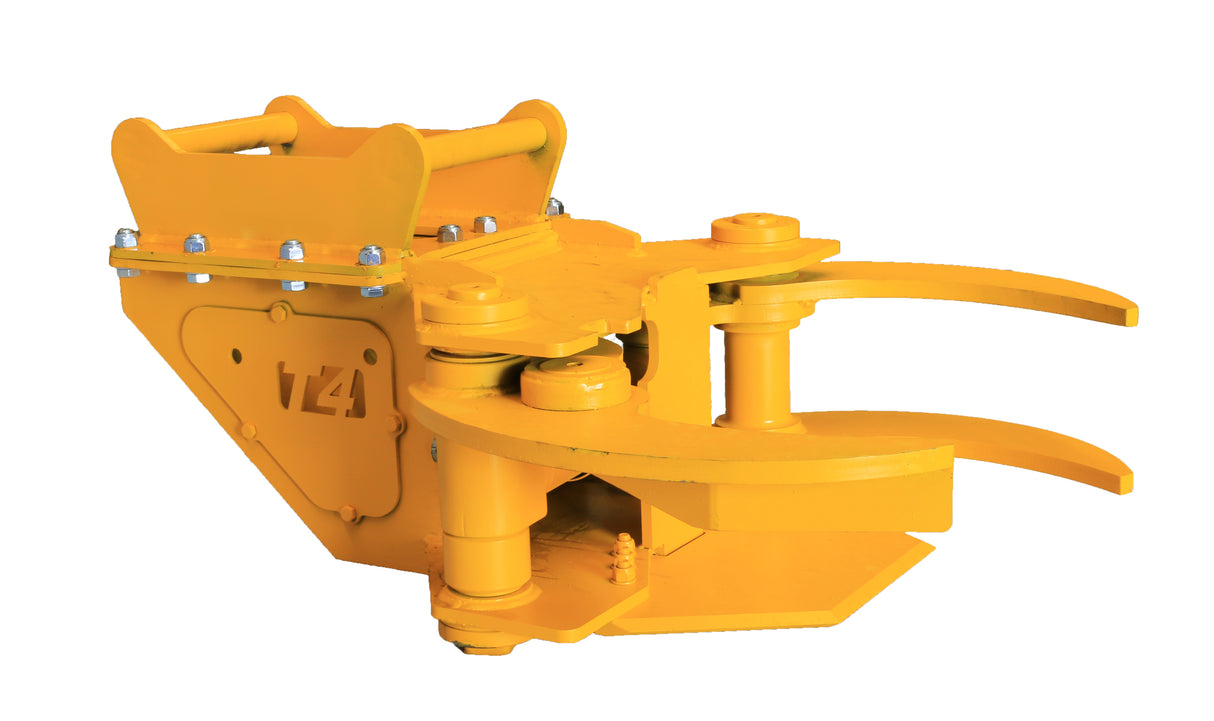

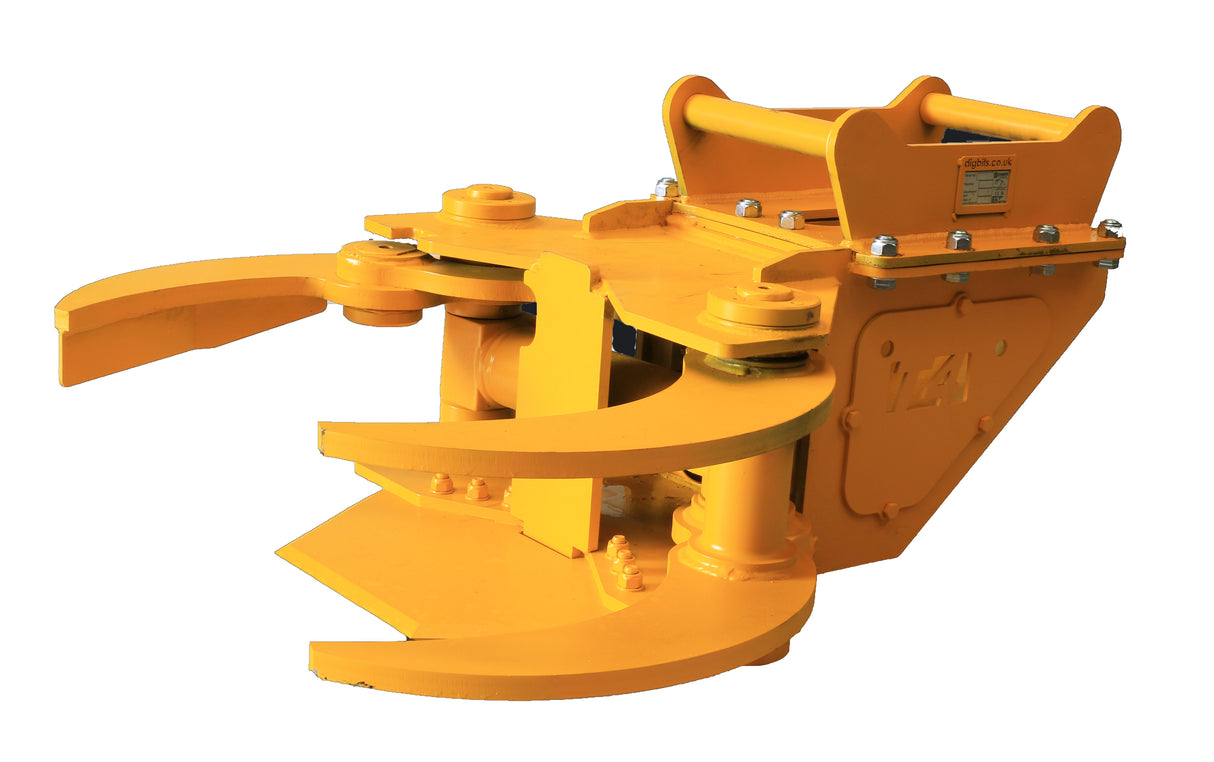

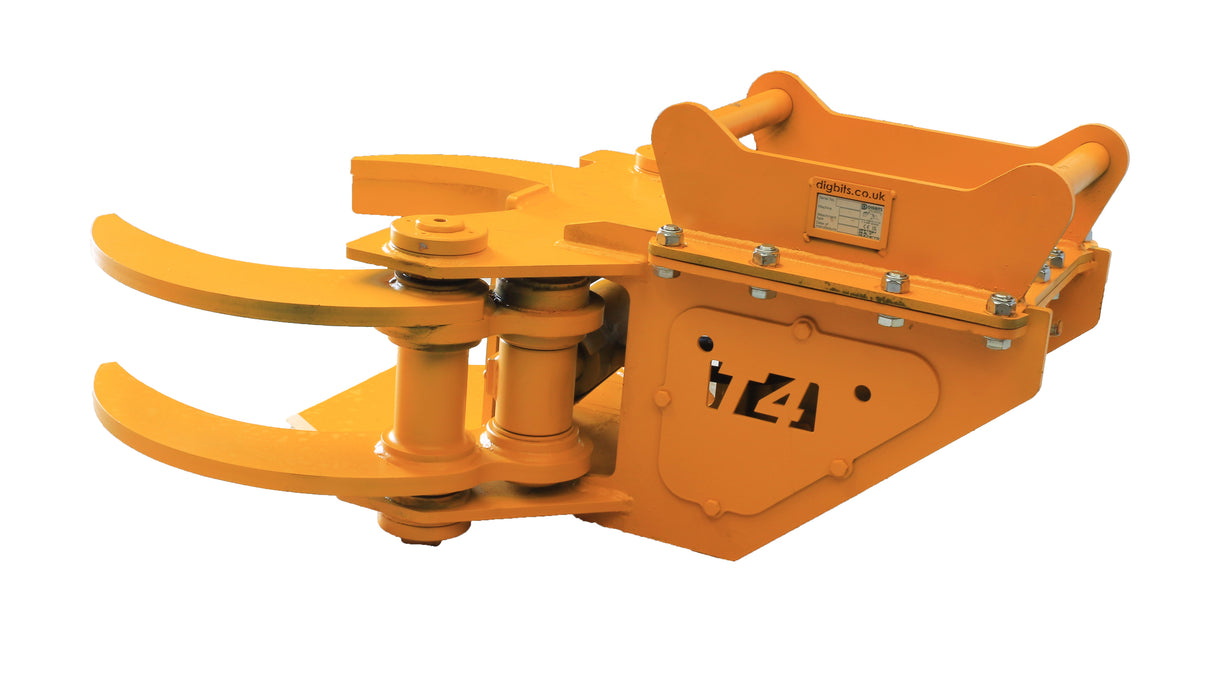

TS04 250mm Tree Shear 4.0-9.0 tonne excavators

£3,855.00

INC. VAT £4,626.00

Shipping calculated at checkout.

Delivery and Shipping

Order before 2pm to get next day delivery for in-stock items. Shipping fees will be calculated at checkout.

Description

Tree Shear for mini excavators from 4.0 to 9.0 tonnes. This grab style shear is designed to enable the felling of smaller trees and saplings complete and also the cutting up of wood on the ground. Ideal for thinning young forests and also maintaining or removing hedges. The unit cuts and holds the tree in a grabbing action.

The TS4 unit features and specifications are:

Hardox® 450 plate throughout for strength, wear resistance and light weight
CNC machined Hardox® blade
Attachment Weight: under 265kgs
Carrier Excavator Weight: 4,000 to 9,000 kgs
Cut diameter: up to 250mm softwood, max. 200mm hardwood

British Made, in our Staffordshire works.

Manufacture time 2 to 4 weeks.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you're looking to efficiently and effectively clear trees and vegetation, with minimal manual labour, our state-of-the-art tree shears are exactly what you need. The power and efficiency of our tree shears and take your projects to new heights.

Overview:

Excavator mounted Tree Shears are designed to enable the felling of
smaller trees and saplings complete and also the cutting up of wood on
the ground. They make rapid work of thinning of young coppices and
hedgerows.
Safety:

Faster and safer than using manual labour with axes and chainsaws, your mini excavator cab provides a safer operating environment, minimizing the risk of accidents and injuries.
Applications:
Suitable for use in a wide variety of applications:
- agricultural
- forestry
- landscaping
- site clearance

for 2.0 to 4.9 tonnes

TS02

for 4.0 to 9.0 tonnes

TS04

for 7.0 to 14.0 tonnes

TS07

Cut diameters from 200mm

Models for Excavators 2.0 to 14 tonnes

8 Bolt Pivot Pins

All our Tree Shears feature our ultra-secure, 8-bolt, end-cap retained pins, which not only vastly reduce the risk of a pin coming lose in operation, but also act under tension as a structural member of the shear assembly.

The pivot pins on a tree shear are under a lot of load. They're also hidden from the operator's view much of the time, obscured by the hitch, excavator arm and often branches too. If you're relying on a basic
castellated nut, held by nothing more than a split pin or cotter pin, is that enough and how does it work structurally?
